Cabinet systems for roadside advertising, commercial façades, transport hubs, sports venues and public information screens. Choose the 1000 mm or 960 mm platform to match the project structure and module format.
The two series use different module and cabinet formats. Both use an aluminum module rear shell for lower weight and efficient heat dissipation.
Modules: 480 × 320 mm standard / 40 × 320 mm curved corner
Cabinet: 960 × 960 × 80 mm
Module rear shell: Aluminum

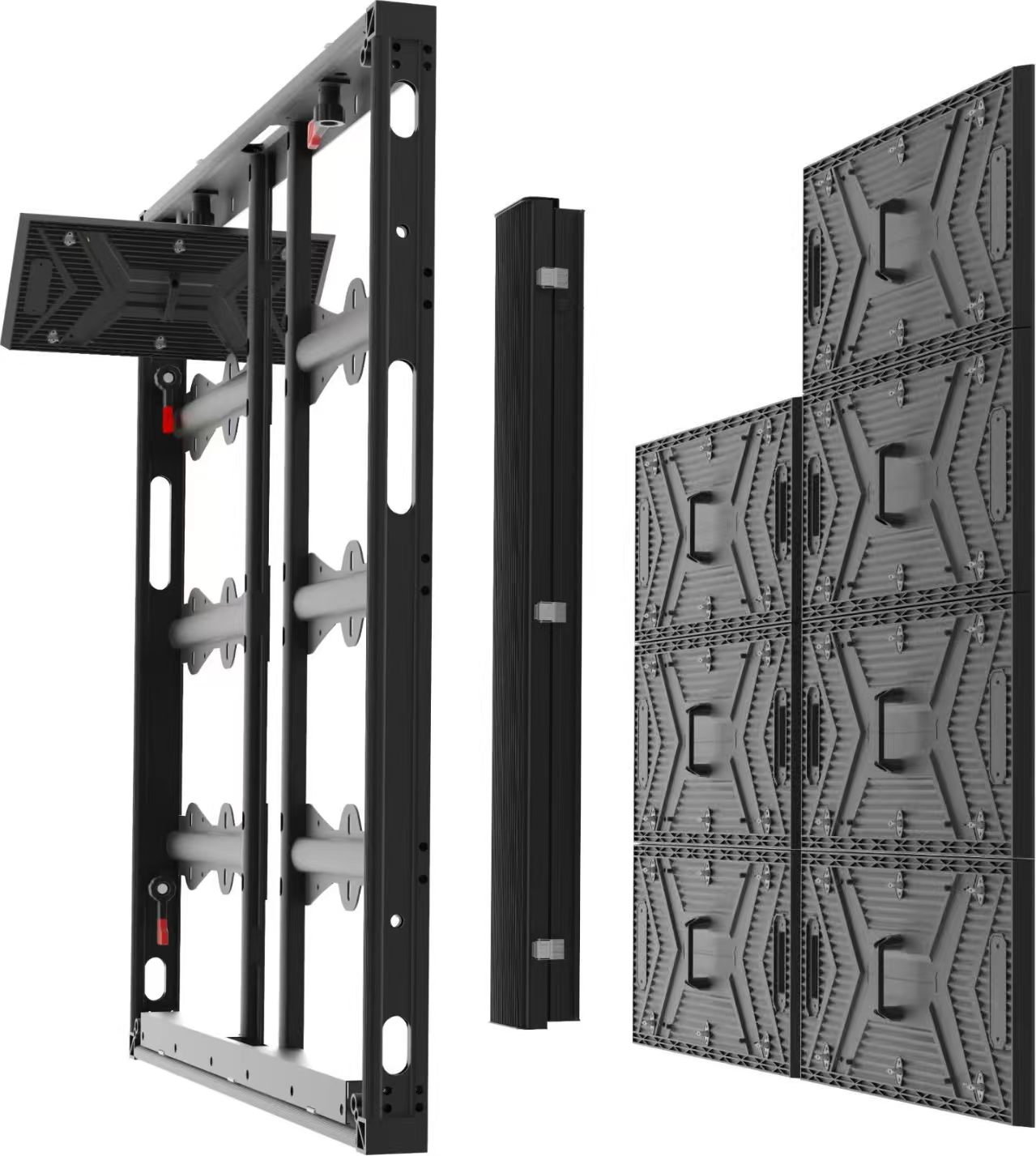

Modules: 500 × 250 / 250 × 250 / 62.5 × 250 mm
Curved corners: 62.5 × 250 mm dedicated module
Cabinet: 1000 × 1000 × 75 mm
Module rear shell: Aluminum
Modules: 500 × 250 / 250 × 250 / 62.5 × 250 mm
Curved corners: 62.5 × 250 mm dedicated module

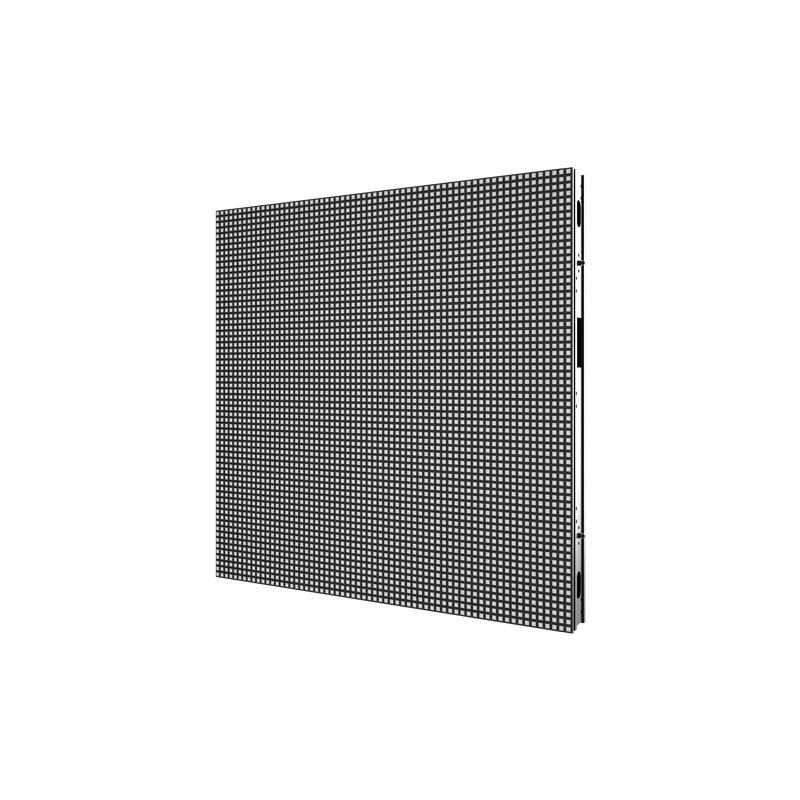

Regular cabinet: 1000 × 1000 × 75 mm

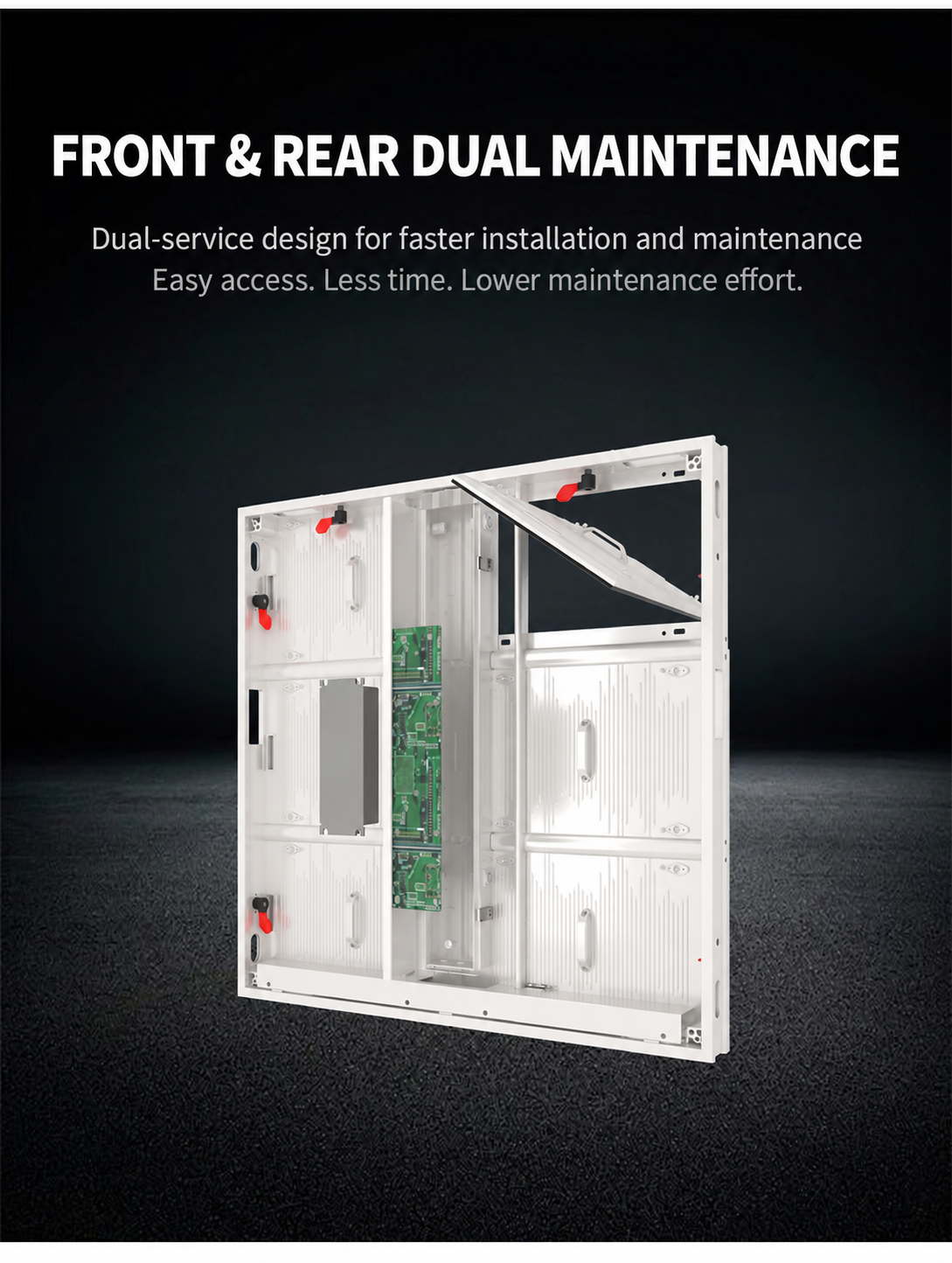

Front and rear dual maintenance. P2.97–P10.42.

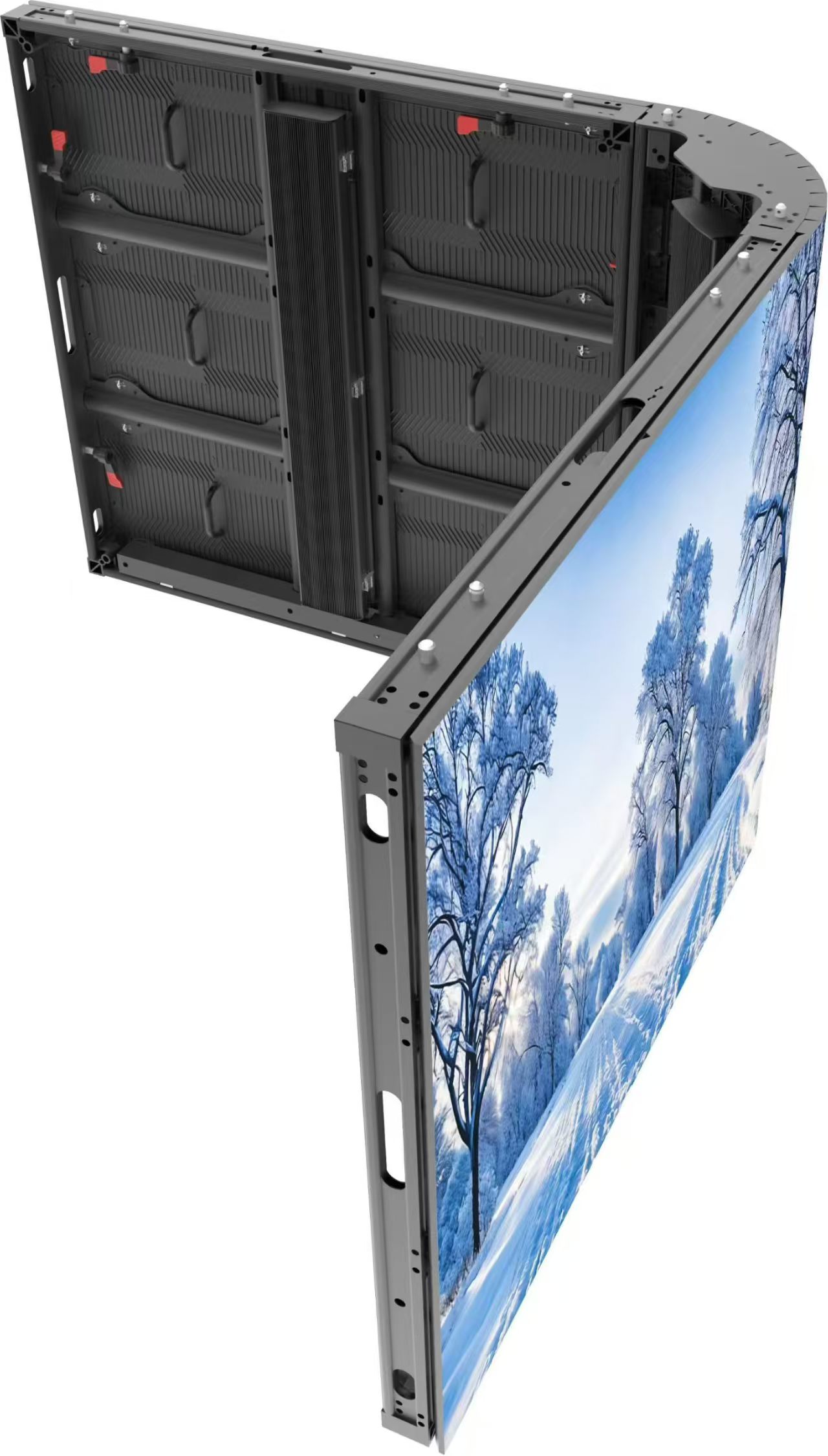

Modules: 480 × 320 mm standard / 40 × 320 mm curved corner

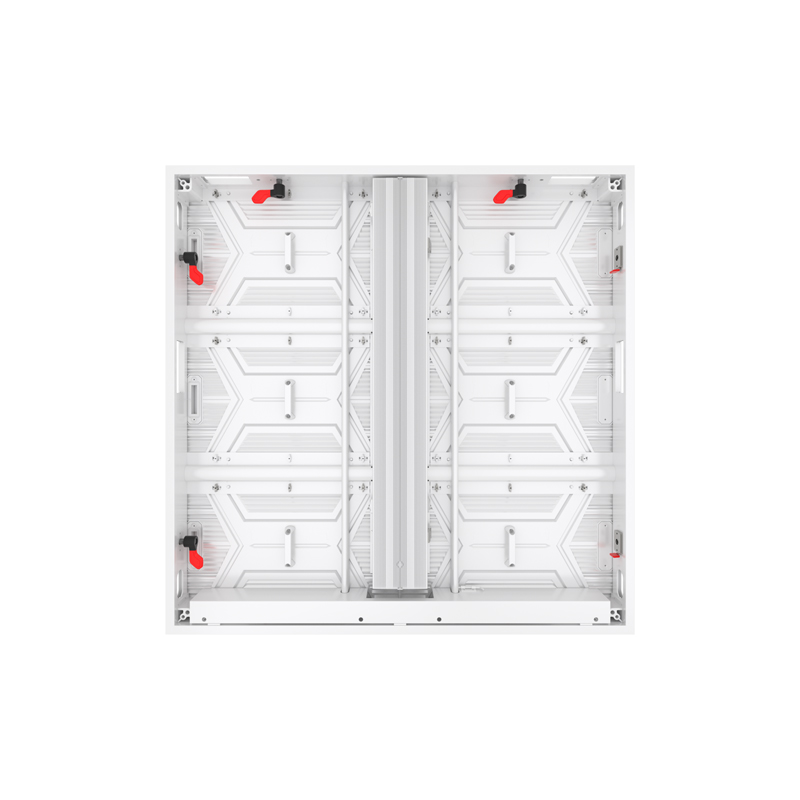

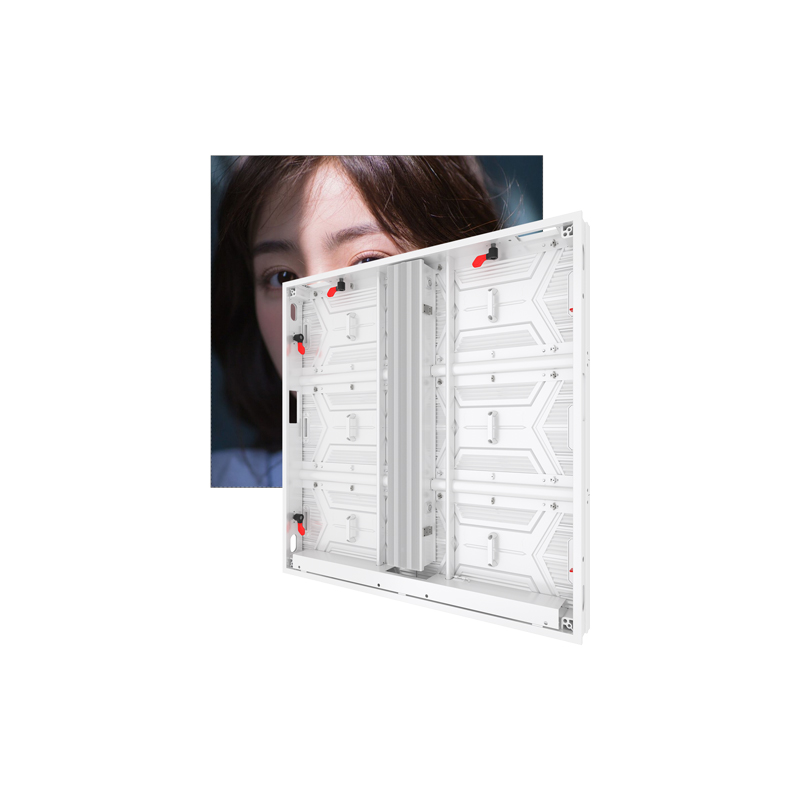

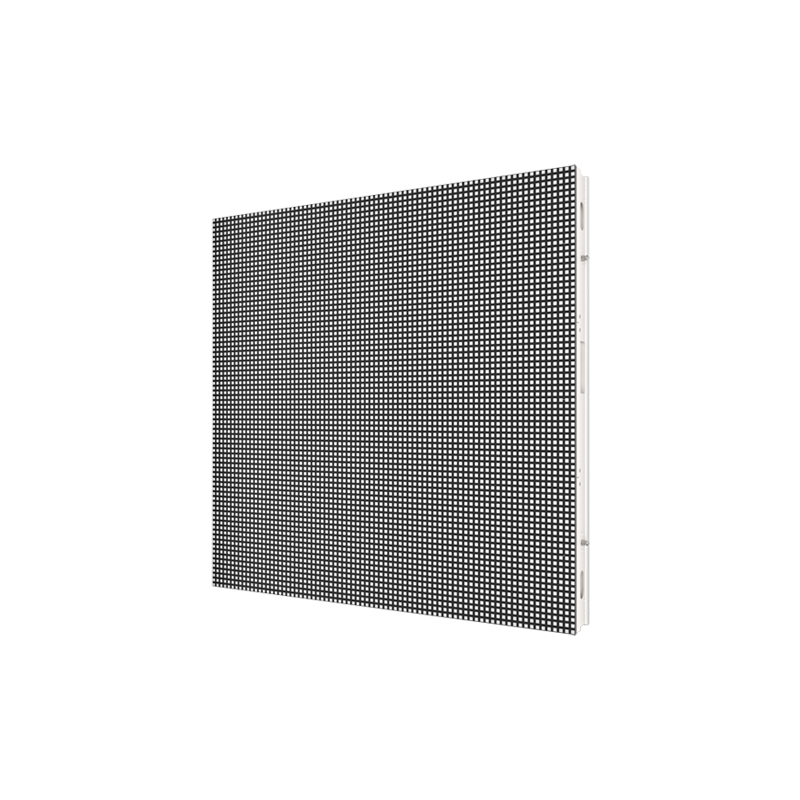

Regular cabinet: 960 × 960 × 80 mm

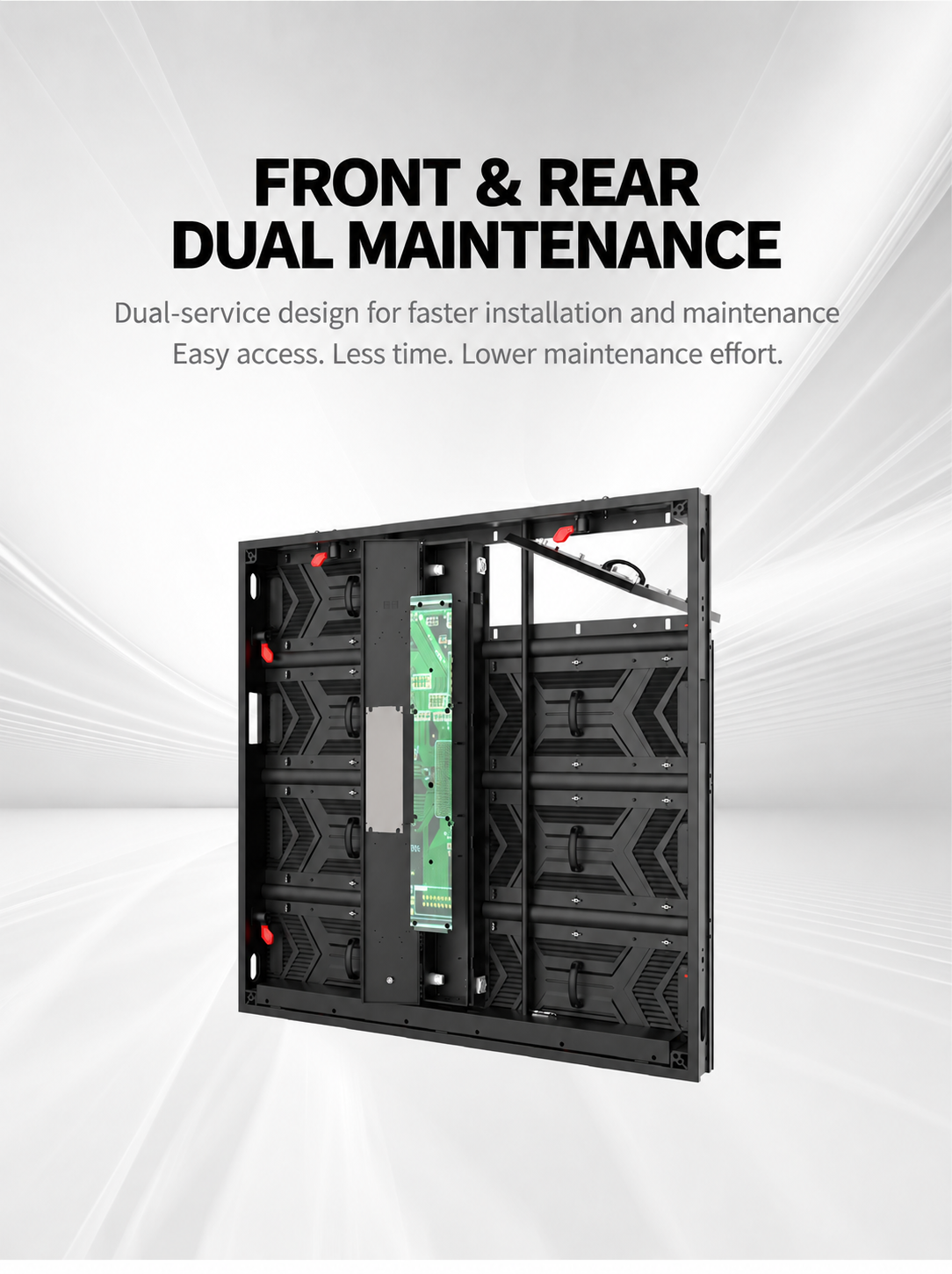

Front and rear dual maintenance. P4–P10.

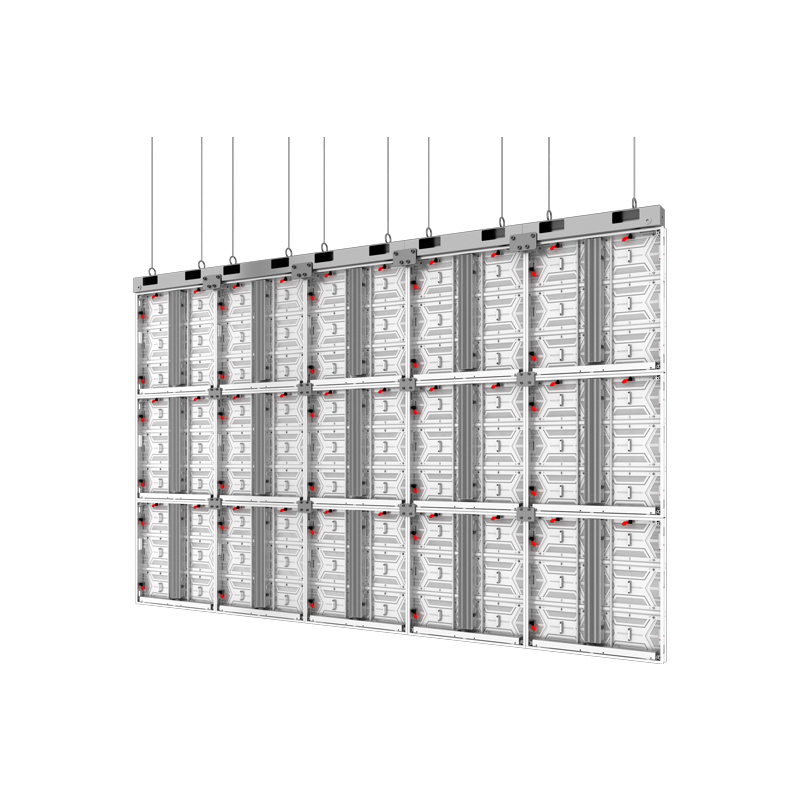

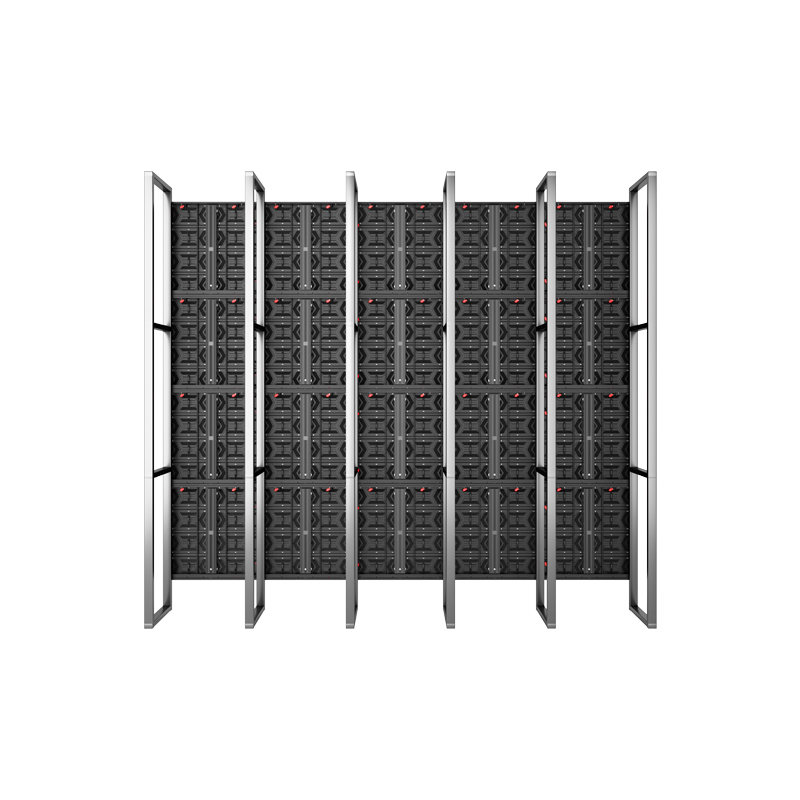

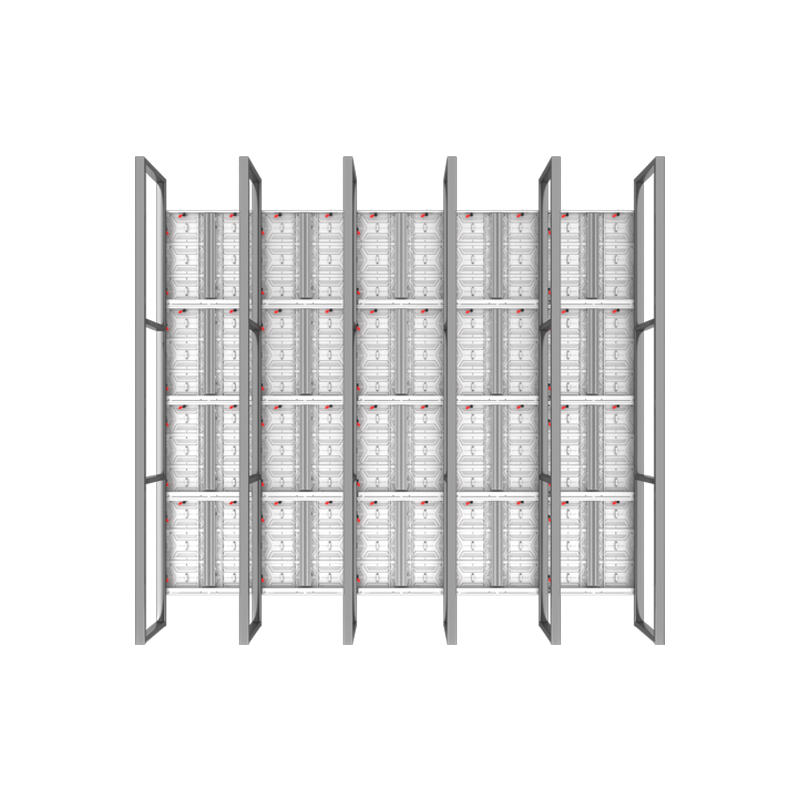

Cabinet count, steel structure, ventilation and controller loading are calculated from the final screen dimensions and installation environment.
Send screen dimensions →Detailed cabinet, module and service-access views.
